Tuning Tomcat For A High Throughput, Fail Fast System

Problem

Netflix has a number of high throughput, low latency mid tier services. In one of these services, it was observed that in case there is a huge surge in traffic in a very short span of time, the machines became cpu starved and would become unresponsive. This would lead to a bad experience for the clients of this service. They would get a mix of read and connect timeouts. Read timeouts can be particularly bad if the read timeouts are set to be very high. The client machines will wait to hear from the server for a long time. In case of SOA, this can lead to a ripple effect as the clients of these clients will also start getting read timeouts and all services can slow down. Under normal circumstances, the machines had ample amount of cpu free and the service was not cpu intensive. So, why does this happen? In order to understand that, let's first look at the high level stack for this service. The request flow would look like this

On simulating the traffic surge in the test environment it was found that the reason for cpu starvation was improper apache and tomcat configuration. On a sudden increase in traffic, multiple apache workers became busy and a very large number of tomcat threads also got busy. There was a huge jump in system cpu as none of the threads could do any meaningful work since most of the time cpu would be context switching.

Solution

Since this was a mid tier service, there was not much use of apache. So, instead of tuning two systems (apache and tomcat), it was decided to simplify the stack and get rid of apache. To understand why too many tomcat threads got busy, let's understand the tomcat threading model.

High Level Threading Model for Tomcat Http Connector

Tomcat has an acceptor thread to accept connections. In addition, there is a pool of worker threads which do the real work. The high level flow for an incoming request is:

1. TCP handshake between OS and client for establishing a connection. Depending on the OS implementation there can be a single queue for holding the connections or there can be multiple queues. In case of multiple queues, one holds incomplete connections which have not yet completed the tcp handshake. Once completed, connections are moved to the completed connection queue for consumption by the application. "acceptCount" parameter in tomcat configuration is used to control the size of these queues.
2. Tomcat acceptor thread accepts connections from the completed connection queue.
3. Checks if a worker thread is available in the free thread pool. If not, creates a worker thread if the number of active threads < maxThreads. Else wait for a worker thread to become free.
4. Once a free worker thread is found, acceptor thread hands the connection to it and gets back to listening for new connections.
5. Worker thread does the actual job of reading input from the connection, processing the request and sending the response to the client. If the connection was not keep alive then it closes the connection and places itself in the free thread pool. For a keep alive connection, waits for more data to be available on the connection. In case data does not become available until keepAliveTimeout, closes the connection and makes itself available in the free thread pool.

In case the number of tomcat threads and acceptCount values are set to be too high, a sudden increase in traffic will fill up the OS queues and make all the worker threads busy. When more requests than that can be handled by the system are sent to the machines, this "queuing" of requests is inevitable and will lead to increased busy threads, causing cpu starvation eventually.  Hence, the crux of the solution is to avoid too much queuing of requests at multiple points (OS and tomcat threads) and fail fast (return http status 503) as soon the application's maximum capacity is reached. Here is a recommendation for doing this in practice:

Fail fast in case the system capacity for a machine is hit

Estimate the number of threads expected to be busy at peak load. If the server responds back in 5 ms on avg for a request, then a single thread can do a max of 200 requests per second (rps). In case the machine has a quad core cpu, it can do max 800 rps. Now assume that 4 requests (since the assumption is that the machine is a quad core) come in parallel and hit the machine. This will make 4 worker threads busy. For the next 5 ms all these threads will be busy. The total rps to the system is the max value of 800, so in next 5 ms, 4 more requests will come and make another 4 threads busy. Subsequent requests will pick up one of the already busy threads which has become free. So, on an average there should not be more than 8 threads busy at 800 rps. The behavior will be a little different in practice because all system resources like cpu will be shared. Hence one should experiment for the total throughput the system can sustain and do a calculation for expected number of busy threads. This will provide a base line for the number of threads needed to sustain peak load. In order to provide some buffer lets more than triple the number of max threads needed to 30. This buffer is arbitrary and can be further tuned if needed. In our experiments we used a slightly more than 3 times buffer and it worked well.

Track the number of active concurrent requests in memory and use it for fast failing. If the number of concurrent requests is near the estimated active threads (8 in our example) then return an http status code of 503. This will prevent too many worker threads becoming busy because once the peak throughput is hit, any extra threads which become active will be doing a very light weight job of returning 503 and then be available for further processing.

Configure Operating System parameters

The acceptCount parameter for tomcat dictates the length of the queues at the OS level for completing tcp handshake operations (details are OS specific). It's important to tune this parameter, otherwise one can have issues with establishing connections to the machine or it can lead to excessive queuing of connections in OS queues which will lead to read timeouts. The implementation details of handling incomplete and complete connections vary across OS. There can be a single queue of connections or multiple queues for incomplete and complete connections (please refer to the References section for details). So, a nice way to tune the acceptCount parameter is to start with a small value and keep increasing it unless the connection errors get removed.

Having too large a value for acceptCount means that the incoming requests can get accepted at the OS level. However, if the incoming rps is more than what a machine can handle, all the worker threads will eventually become busy and then the acceptor thread will wait for a worker thread to become free. More requests will continue to pile up in the OS queues since acceptor thread will consume them only when a worker thread becomes available. In the worst case, these requests will timeout while waiting in the OS queues, but will still be processed by the server once they get picked by the tomcat's acceptor thread. This is a complete waste of processing resources as a client will never receive any response.

If the value of acceptCount is too small, then in case of a high rps there will not be enough space for OS to accept connections and make it available for the acceptor thread. In this case, connect timeout errors will be returned to the client way below the actual throughput for the server is reached.

Hence experiment by starting with a small value like 10 for acceptCount and keep increasing it until there are are no connection errors from the server.

On doing both the changes above, even if all the worker threads become busy in the worst case, the servers will not be cpu starved and will be able to do as much work as possible (max throughput).

Other considerations

As explained above, each incoming connection is ultimately handled to a worker tomcat thread. In case http keep alive is turned on, a worker thread will continue to listen on a connection and will not be available in the free thread pool. So, if the clients are not smart to close the connection once it's not being actively used, the server can very easily run out of worker threads. If keep alive is turned on then one has to size the server farm by keeping this constraint in mind.

Alternatively, if keep alive is turned off then one does not have to worry about the problem of inactive connections using worker threads. However, in this case on each call one has to pay the price of opening and closing the connection. Further, this will also create a lot of sockets in the TIME_WAIT state which can put pressure on the servers.

Its best to pick the choice based on the use cases for the application and to test the performance by running experiments.

Results

Multiple experiments were run with different configurations. The results are shown below. The dark blue line is the original configuration with apache and tomcat. All the other are different configurations for the stack with only tomcat

Throughput

Note the drop after a sustained period of traffic higher than what can be served by server.

Busy Apache Workers

Idle cpu

Note that the original configuration got so busy that it was not even able to publish the stats for idle cpu on a continuous basis. The stats were published (valued 0) for the base configuration intermittently as highlighted in the red circles

Server average latency to process a request

Note

Its possible to achieve the same results by tuning the combination of apache and tomcat to work together. However, since there was not much use of apache for our service, we found the above model simpler with one less moving part. It's best to make choices by a combination of understanding the system and use of experimentation and testing in a real-world environment to verify hypothesis.

References

1. https://books.google.com/books/about/UNIX_Network_Programming.html?id=ptSC4LpwGA0C&source=kp_cover&hl=en
2. http://www.sean.de/Solaris/soltune.html
3. https://tomcat.apache.org/tomcat-7.0-doc/config/http.html
4. http://grepcode.com/project/repository.springsource.com/org.apache.coyote/com.springsource.org.apache.coyote/

Acknowledgment

I would like to thank Mohan Doraiswamy for his suggestions in this effort.

Read More

Java in Flames

Java mixed-mode flame graphs provide a complete visualization of CPU usage and have just been made possible by a new JDK option: -XX:+PreserveFramePointer. We've been developing these at Netflix for everyday Java performance analysis as they can identify all CPU consumers and issues, including those that are hidden from other profilers.

Example
This shows CPU consumption by a Java process, both user- and kernel-level, during a vert.x benchmark:

Click to zoom (SVG, PNG). Showing all CPU usage with Java context is amazing and useful. On the top right you can see a peak of kernel code (colored red) for performing a TCP send (which often leads to a TCP receive while handling the send). Beneath it (colored green) is the Java code responsible. In the middle (colored green) is the Java code that is running on-CPU. And in the bottom left, a small yellow tower shows CPU time spent in GC.

We've already used Java flame graphs to quantify performance improvements between frameworks (Tomcat vs rxNetty), which included identifying time spent in Java code compilation, the Java code cache, other system libraries, and differences in kernel code execution. All of these CPU consumers were invisible to other Java profilers, which only focus on the execution of Java methods.

Flame Graph Interpretation

If you are new to flame graphs: The y axis is stack depth, and the x axis spans the sample population. Each rectangle is a stack frame (a function), where the width shows how often it was present in the profile. The ordering from left to right is unimportant (the stacks are sorted alphabetically).

In the previous example, color hue was used to highlight different code types: green for Java, yellow for C++, and red for system. Color intensity was simply randomized to differentiate frames (other color schemes are possible).

You can read the flame graph from the bottom up, which follows the flow of code from parent to child functions. Another way is top down, as the top edge shows the function running on CPU, and beneath it is its ancestry. Focus on the widest functions, which were present in the profile the most. See the CPU flame graphs page for more about interpretation, and Brendan's USENIX/LISA'13 talk (video).

The Problem with Profilers
In order to generate flame graphs, you need a profiler that can sample stack traces. There have historically been two types of profilers used on Java:

• System profilers: such as Linux perf_events, which can profile system code paths, including libjvm internals, GC, and the kernel, but not Java methods.
• JVM profilers: such as hprof, Lightweight Java Profiler (LJP), and commercial profilers. These show Java methods, but not system code paths.

To understand all types of CPU consumers, we previously used both types of profilers, creating a flame graph for each. This worked – sort of. While all CPU consumers could be seen, Java methods were missing from the system profile, which was crucial context we needed.

Ideally, we would have one flame graph that shows it all: system and Java code together.

A system profiler like Linux perf_events should be well suited to this task as it can interrupt any software asynchronously and capture both user- and kernel-level stacks. However, system profilers don't work well with Java. The problem is shown by the flame graph on the right. The Java stacks and method names are missing.

There were two specific problems to solve:

1. The JVM compiles methods on the fly (just-in-time: JIT), and doesn't expose a symbol table for system profilers.
2. The JVM also uses the frame pointer register on x86 (RBP on x86-64) as a general-purpose register, breaking traditional stack walking.

Brendan summarized these earlier this year in his Linux Profiling at Netflix talk for SCALE. Fortunately, there was already a fix for the first problem.

Fixing Symbols
In 2009, Linux perf_events added JIT symbol support, so that symbols from language virtual machines like the JVM could be inspected. To use it, your application creates a /tmp/perf-PID.map text file, which lists symbol addresses (in hex), sizes, and symbol names. perf_events looks for this file by default and, if found, uses it for symbol translations.

Java can create this file using perf-map-agent, an open source JVMTI agent written by Johannes Rudolph. The first version needed to be attached on Java startup, but Johannes enhanced it to attach later on demand and take a symbol dump. That way, we only load it if we need it for a profile. Thanks, Johannes!

Since symbols can change slightly during the profile (we’re typically profiling for 30 or 60 seconds), a symbol dump may include stale symbols. We’ve looked at taking two symbol dumps, before and after the profile, to highlight any such differences. Another approach in development involves a timestamped symbol log to ensure that all translations are accurate (although this requires always-on logging of symbols). So far symbol churn hasn’t been a large problem for us, after Java and JIT have “warmed up” and symbol churn is minimal (this can take a few minutes, given sufficient load). We do bear it in mind when interpreting flame graphs.

Fixing Frame Pointers
For many years the gcc compiler has reused the frame pointer as a compiler optimization, breaking stack traces. Some applications compile with the gcc option -fno-omit-frame-pointer, to preserve this type of stack walking, however, the JVM had no equivalent option. Could the JVM be modified to support this?

Brendan was curious to find out, and hacked a working prototype for OpenJDK. It involved dropping RBP from eligible register pools, eg (diff):

--- openjdk8clean/hotspot/src/cpu/x86/vm/x86_64.ad      2014-03-04 02:52:11.000000000 +0000
+++ openjdk8/hotspot/src/cpu/x86/vm/x86_64.ad   2014-11-08 01:10:49.686044933 +0000
@@ -166,10 +166,9 @@
 // 3) reg_class stack_slots( /* one chunk of stack-based "registers" */ )
 //

-// Class for all pointer registers (including RSP)
+// Class for all pointer registers (including RSP, excluding RBP)
 reg_class any_reg(RAX, RAX_H,
                   RDX, RDX_H,
-                  RBP, RBP_H,
                   RDI, RDI_H,
                   RSI, RSI_H,
                   RCX, RCX_H,

... and then fixing the function prologues to store the stack pointer (rsp) into the frame pointer (base pointer) register (rbp):

--- openjdk8clean/hotspot/src/cpu/x86/vm/macroAssembler_x86.cpp 2014-03-04 02:52:11.000000000 +0000
+++ openjdk8/hotspot/src/cpu/x86/vm/macroAssembler_x86.cpp      2014-11-07 23:57:11.589593723 +0000
@@ -5236,6 +5236,7 @@
     // We always push rbp, so that on return to interpreter rbp, will be
     // restored correctly and we can correct the stack.
     push(rbp);
+    mov(rbp, rsp);
     // Remove word for ebp
     framesize -= wordSize;

It worked. Here are the before and after flame graphs. Brendan posted it, with example flame graphs, to the hotspot compiler devs mailing list. This feature request became JDK-8068945 for JDK9 and JDK-8072465 for JDK8.

Fixing this properly involved a lot more work (see discussions in the bugs and mailing list). Zoltán Majó, of Oracle, took this on and rewrote the patch. After testing, it was finally integrated into the early access releases of both JDK9 and JDK8 (JDK8 update 60 build 19), as the new JDK option: -XX:+PreserveFramePointer.

Many thanks to Zoltán, Oracle, and the other engineers who helped get this done!

Since use of this mode disables a compiler optimization, it does decrease performance slightly. We've found in tests that this costs between 0 and 3% extra CPU, depending on the workload. See JDK-8068945 for some additional benchmarking details. There are also other techniques for walking stacks, some with zero run time cost to make available, however, there are other downsides with these approaches.

Instructions
The following steps describe how these flame graphs can be created. We’re working on improving and automating these steps using Vector (more on that in a moment).

1. Install software
There are four components to install:

Linux perf_events
This is the standard Linux profiler, aka “perf” after its front end, and is included in the Linux source (tools/perf). Try running perf help to see if it is installed; if not, your distro may suggest how to get it, usually by adding a perf-tools-common package.

Java 8 update 60 build 19 (or newer)
This includes the frame pointer patch fix (JDK-8072465), which is necessary for Java stack profiling. It is currently released as early access (built from OpenJDK).

perf-map-agent
This is a JVMTI agent that provides Java symbol translation for perf_events is on github. Steps to build this typically involve:

apt-get install cmake
export JAVA_HOME=/path-to-your-new-jdk8
git clone --depth=1 https://github.com/jrudolph/perf-map-agent
cd perf-map-agent
cmake .
make

The current version of perf-map-agent can be loaded on demand, after Java is running.
WARNING: perf-map-agent is experimental code – use at your own risk, and test before use!

FlameGraph
This is some Perl software for generating flame graphs. It can be fetched from github:

git clone --depth=1 https://github.com/brendangregg/FlameGraph

This contains stackcollapse-perf.pl, for processing perf_events profiles, and flamegraph.pl, for generating the SVG flame graph.

2. Configure Java
Java needs to be running with the -XX:+PreserveFramePointer option, so that perf_events can perform frame pointer stack walks. As mentioned earlier, this can cost some performance, between 0 and 3% depending on the workload.

3a. Generate System Wide Flame Graphs
With this software and Java running with frame pointers, we can profile and generate flame graphs.

For example, taking a 30-second profile at 99 Hertz (samples per second) of all processes, then caching symbols for Java PID 1690, then generating a flame graph:

sudo perf record -F 99 -a -g -- sleep 30
java -cp attach-main.jar:$JAVA_HOME/lib/tools.jar net.virtualvoid.perf.AttachOnce 1690    # run as same user as java
sudo chown root /tmp/perf-*.map
sudo perf script | stackcollapse-perf.pl | \
    flamegraph.pl --color=java --hash > flamegraph.svg

The attach-main.jar file is from perf-map-agent, and stackcollapse-perf.pl and flamegraph.pl are from FlameGraph. Specify their full paths unless they are in the current directory.

These steps address some quirky behavior involving user permissions: sudo perf script only reads symbol files the current user (root) owns, and, perf-map-agent creates files with the same user ownership as the Java process, which for us is usually non-root. This means we have to change the ownership to root for the symbol file, and then run perf script.

With jmaps
Dealing with symbol files has become a chore, so we’ve been automating it. Here’s one example: jmaps, which can be used like so:

sudo perf record -F 99 -a -g -- sleep 30; sudo jmaps
sudo perf script | stackcollapse-perf.pl | \
    flamegraph.pl --color=java --hash > flamegraph.svg

jmaps creates symbol files for all Java processes, with root ownership. You may want to write a similar “jmaps” helper for your environment (our jmaps example is unsupported). Remember to clean up the /tmp symbol files when you no longer need them!

3b. Generate By-Process Flame Graphs
The previous procedure grouped Java processes together. If it is important to separate them (and, on some of our instances, it is), you can modify the procedure to generate a by-process flame graph. Eg (with jmaps):

sudo perf record -F 99 -a -g -- sleep 30; sudo jmaps
sudo perf script -f comm,pid,tid,cpu,time,event,ip,sym,dso,trace | \
    stackcollapse-perf.pl --pid | \
    flamegraph.pl --color=java --hash > flamegraph.svg

The output of stackcollapse-perf.pl formats each stack as a single line, and is great food for grep/sed/awk. For the flamegraph at the top of this post, we used the above procedure, and added “| grep java-339” before the “| flamegraph.pl”, to isolate that one process. You could also use a “| grep -v cpu_idle”, to exclude the kernel idle threads.

Missing Frames
If you start using these flame graphs, you’ll notice that many Java frames (methods) are missing. Compared to the jstack(1) command line tool, the stacks seen in the flame graph look perhaps one third as deep, and are missing many frames. This is because of inlining, combined with this type of profiling (frame pointer based) which only captures the final executed code.

This hasn’t been much of a problem so far: even when many frames are missing, enough remain that we can figure out what’s going on. We’ve also experimented with reducing the amount of inlining, eg, using -XX:InlineSmallCode=500, to increase the number of frames in the profile. In some cases this even improves performance slightly, as the final compiled instruction size is reduced, fitting better into the processor caches (we confirmed this using perf_events separately).

Another approach is to use JVMTI information to unfold the inlined symbols. perf-map-agent has a mode to do this; however, Min Zhou from LinkedIn has experienced Java crashes when using this, which he has been fixing in his version. We’ve not seen these crashes (as we rarely use that mode), but be warned.

Vector
The previous steps for generating flame graphs are a little tedious. As we expect these flame graphs will become an everyday tool for Java developers, we’ve looked at making them as easy as possible: a point-and-click interface. We’ve been prototyping this with our open source instance analysis tool: Vector.

Vector was described in more details in a previous techblog post. It provides a simple way for users to visualize and analyze system and application-level metrics in near real-time, and flame graphs is a great addition to the set of functionalities it already provides.

We tried to keep the user interaction as simple as possible. To generate a flame graph, you connect Vector to the target instance, add the flame graph widget to the dashboard, then click the generate button. That's it!

Behind the scenes, Vector requests a flame graph from a custom instance agent that we developed, which also supplies Vector's other metrics. Vector checks the status of this request while fetching and displaying other metrics, and displays the flame graph when it is ready.

Our custom agent is not generic enough to be used by everyone yet (it depends on the Netflix environment), so we have yet to open-source it. If you're interested in testing or extending it, reach out to us.

Future Work
We have some enhancements planned. One is for regression analysis, by automatically collecting flame graphs over different days and generating flame graph differentials for them. This will help us quickly understand changes in CPU usage due to software changes.

Apart from CPU profiling, perf_events can also trace user- and kernel-level events, including disk I/O, networking, scheduling, and memory allocation. When these are synchronously triggered by Java, a mixed-mode flame graph will show the code paths that led to these events. A page fault mixed-mode flame graph, for example, can be used to show which Java code paths led to an increase in main memory usage (RSS).

We also want to develop enhancements for flame graphs and Vector, including real time updates. For this to work, our agent will collect perf_events directly and return a data structure representing the partial flame graph to Vector with every check. Vector, with this information, will be able to assemble the flame graph in real time, while the profile is still being collected. We are also investigating using D3 for flame graphs, and adding interactivity improvements.

Other Work
Twitter have also explored making perf_events and Java work better together, which Kaushik Srenevasan summarized in his Tracing and Profiling talk from OSCON 2014 (slides). Kaushik showed that perf_events has much lower overhead when compared to some other Java profilers, and included a mixed-mode stack trace from perf_events. David Keenan from Twitter also described this work in his Twitter-Scale Computing talk (video), as well as summarizing other performance enhancements they have been making to the JVM.

At Google, Stephane Eranian has been working on perf_events and Java as well and has posted a patch series that supports a timestamped JIT symbol transaction log from Java for accurate symbol translation, solving the stale symbol problem. It’s impressive work, although a downside with the logging technique may be the performance cost of always logging symbols even if a profiler is never used.

Conclusion
CPU mixed-mode flame graphs help identify and quantify all CPU consumers. They show the CPU time spent in Java methods, system libraries, and the kernel, all in one visualization. This reveals CPU consumers that are invisible to other profilers, and have so far been used to identify issues and explain performance changes between software versions.

These mixed-mode flame graphs have been made possible by a new option in the JVM: -XX:+PreserveFramePointer, available in early access releases. In this post we described how these work, the challenges that were addressed, and provided instructions for their generation. Similar visibility for Node.js was described in our earlier post: Node.js in Flames.

by Brendan Gregg and Martin Spier

Read More

Tracking down the Villains: Outlier Detection at Netflix

It’s 2 a.m. and half of our reliability team is online searching for the root cause of why Netflix streaming isn’t working. None of our systems are obviously broken, but something is amiss and we’re not seeing it. After an hour of searching we realize there is one rogue server in our farm causing the problem. We missed it amongst the thousands of other servers because we were looking for a clearly visible problem, not an insidious deviant.

In Netflix’s Marvel’s Daredevil, Matt Murdock uses his heightened senses to detect when a person’s actions are abnormal. This allows him to go beyond what others see to determine the non-obvious, like when someone is lying. Similar to this, we set out to build a system that could look beyond the obvious and find the subtle differences in servers that could be causing production problems. In this post we’ll describe our automated outlier detection and remediation for unhealthy servers that has saved us from countless hours of late-night heroics.

Shadows in the Glass

The Netflix service currently runs on tens of thousands of servers; typically less than one percent of those become unhealthy. For example, a server’s network performance might degrade and cause elevated request processing latency. The unhealthy server will respond to health checks and show normal system-level metrics but still be operating in a suboptimal state.

A slow or unhealthy server is worse than a down server because its effects can be small enough to stay within the tolerances of our monitoring system and be overlooked by an on-call engineer scanning through graphs, but still have a customer impact and drive calls to customer service. Somewhere out there a few unhealthy servers lurk among thousands of healthy ones.

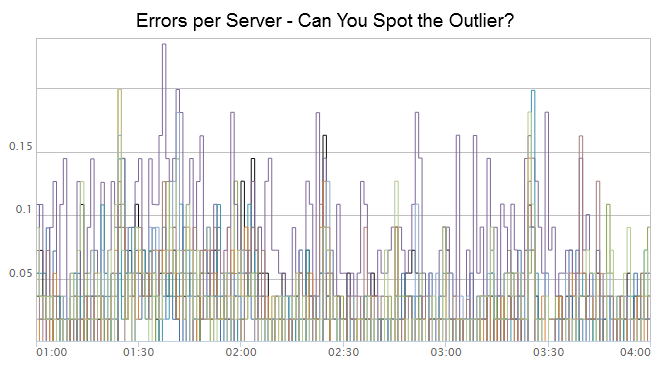

The purple line in the graph above has an error rate higher than the norm. All other servers have spikes but drop back down to zero, whereas the purple line consistently stays above all others. Would you be able to spot this as an outlier? Is there a way to use time series data to automatically find these outliers?
